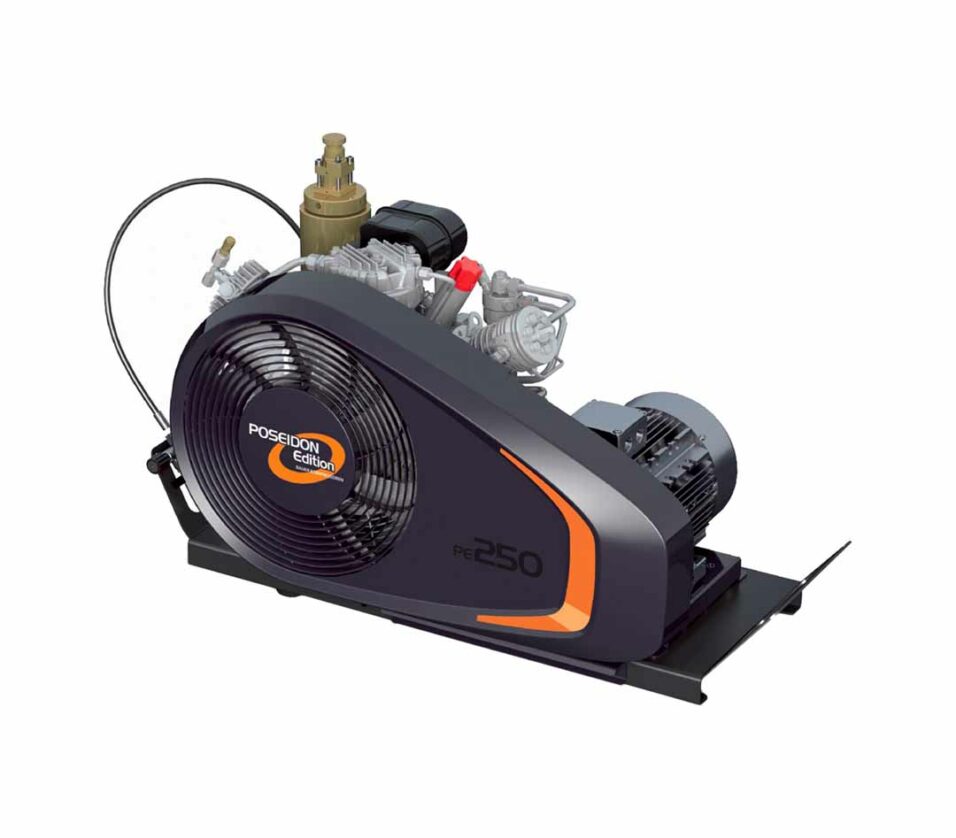

Scuba Compressor Bauer Poseidon PE250 Electric 225 Bar Black

Scuba Compressor Bauer Poseidon PE 250 Electric 225 Bar Black

The PE-TE/TB series is designed for high FAD volumes up to 225-300 i/min in mobile use, and is available with a choice of electric petrol drive. The system are thus suitable for private use and commercial filling station operations. With compact design and functional carry frame, theses compressors are easy to transport and stow in vehicles.

Their intergrated oil pump enables them to be operated at inclinations of  up to 15 degrees. so that this series is particularly suitables for shipping aplications. Also included is the BAUER P21 Purification System (P31 with PE 250-TB and PE 300-TB). This sophisticated air purification system with integrated oil and water separator and pressuriser valve reliably prevents user from inhaling air impurities and provides effective protection from icing up when cartridges are changed regularly.

Features :

• High FAD, yet low in weight and easy to transport
• Ideal for marine use, with interstage and afterstage cooler in stainless steel. Highly corrosion resistant
• Optionally available with user friendly ultra rugged B-Timer mini computer for filter cartridge monitoring

IK 120 Compressor Block

The BAUER IK 120 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios. With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces. Furthermore, wear-resistant piston rings in the final stage minimize running costs. The compressor block is both efficient and reliable. Stainless steel cooling ribs on the cooler in the final stage provide the basis for particularly efficient cooling and thus very long service life.

P21 Filter System

When used in conjunction with original BAUER filter cartridges, the P 21 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated. If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO₂ in the intake air does not exceed the values specified in the applicable standard for breathing air.

Filling Device and Hose

The filling device comprises a flexible "UNIMAM" high-pressure filling hose and filling valve complete with final pressure gauge. The final pressure gauge makes it easy to read off the filling pressure. It is protected against damage by a durable rubber jacket. High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.
